Description:

FEATURE

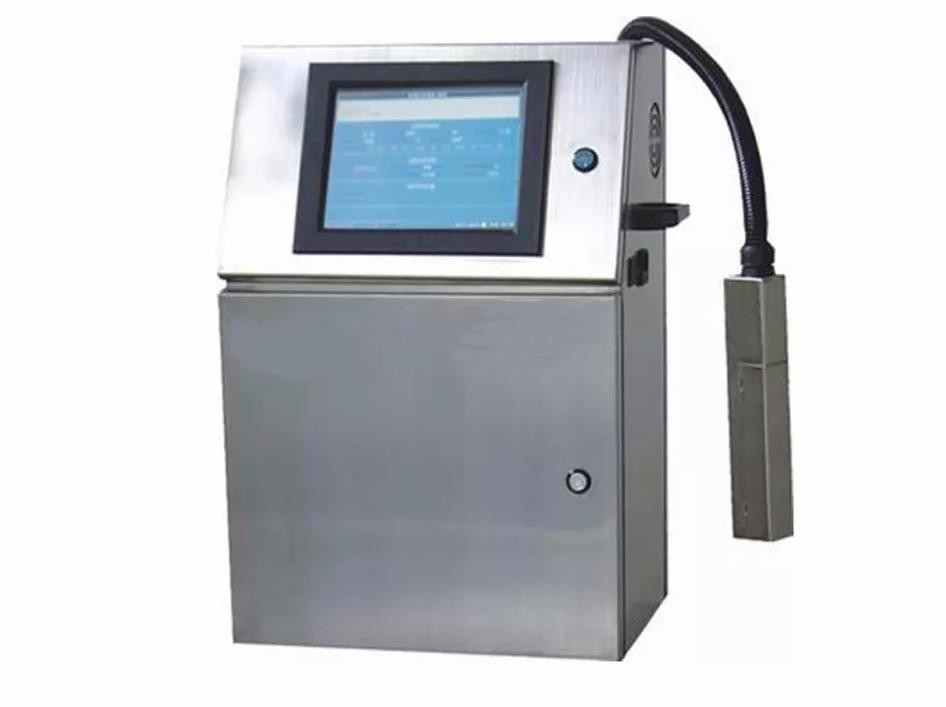

- Quick-dry balck ink used industrial non-contact small character inkjet printers

- Print consistently high quality images even on structured and uneven surfaces

- Print features include text, date, time, batch numbers, logo and trademark

- Easy to be integrated at any position of the production line

- User friendly interface and most reliable ink system

- 32 bit embeded CPU, large memory, and the 8.4'' TFT bright clear touch screen

- Configure RS232 and USB communication interface, can upgrade the software.

- Multitask system, printing and editting at the same time



APPLICATIONS

Automobile part, Foods, Beverages, Cosmetics, Electronic Component , Pharmaceutical,

Stone, Wooden, products, Eggs, Pipes and Tubes, Cables and Wires etc.



HYDRAULIC SYSTEM

Full automatic viscosity control and pressure control

Diaphragm pumps with reliability, longer life, low maintenance cost than gear pump

Electronic control system completely separated design from hydraulic system

PRINT HEAD

- Compatible design, maintenance friendly

- Automatic ink stream on when start up and ink stream suck back when turn off

- Nozzle size: 58 μm standard, 52 to 65 μm optional

- Easily accessible and can be installed in any position

- Distance from print head to print surface 1mm~30mm

TECHNICAL SPECIFICATION

Print Lines--- 1-5 lines (5 x 5 dots)

Dot Matrix--- figure and letter 5 x 5, 5 x 7, 8 x 10, 8 x 12, 12 x 16, 16 x 16,

24 x 24, and user-defined in 32 x 32

Memory--- 1000 message, 1000 graphics

Print Speed--- 1,400 character per second (5 x 7 dots)

Letter Height-- 1-20mm

Operating Interface-- Chinese, English

Print Objects--- English chracter, Arabic number, date, time, batch numbers, and logo, trademark, text

Material metal, plastic, glass, woode, tubing, electrical wire, cable etc

Font Width-- up to 9 times

Nozzle Connection Tube-- 3M

Ink Color-- black, blue,red etc

Consumption of Ink-- 70 millions character per litre

Operating Environment-- 5-45 degree centigrade, below 90%(humidity)

Power Source--- AC220V / 380V 50HZ 100AV

Our Service

1. We are a direct manufacturer and our priority is your complete satisfaction.

2. Logo printing: We can print any logo as per your requires on the case.

3. We take care of each order from start to finish. All emails will be answered in 1 day

4. No matter what's your order quantity, we will offer the same attention to our quality and service

5. Delivery & lead time: All delivery methods are ok, and our lead time is quite short. Usually, our lead time around 7 days, depending on the quantity.

6. Packages: Available for Wooden case and carton box
