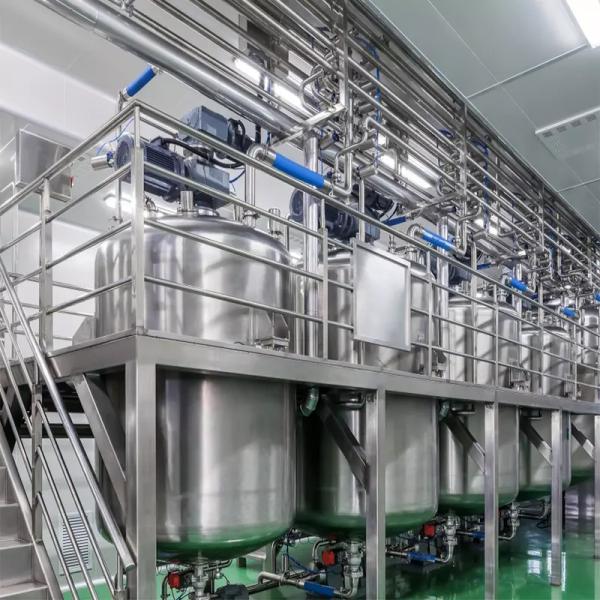

Dry Powder Mixing Machine For Shampoo Detergent Heating Mixing Tank
Production Discription:
It is an indispensable device for daily chemical industry. such as
the production of medicine, pesticides, food, liquid soap,
commodity, cosmetics, chemical shampoo, bath gel and other mucus
inter-mixed, dissolved, mixing stirring, it is ideal for daily
chemical industry equipment .
The blending system adopts single-direction or double- direction
wall scraping blending and frequency conversion speed adjustment to
satisfy production of different technological requirements.
Materials can be heated or cooled according to technological
requirements. The heating methods such as steam or electric heating
can be selected according to customer requirements.
Various forms of blending vanes are suitable for production of
different types of products.
Made of imported SUS304 or SUS316L stainless steel. The tank body
and pipe are subjected to mirror polishing.
Bottom installation type dispersing head and XINJI pipeline type
emulsifying head are optional to speed up dissolution and
emulsification of materials.
The stainless steel electric control cabinet can completely
supervise the operation of equipment, and display such data as
temperature and blending rotation speed etc.
Advantages & Features:
SUS316 material to make contact with some of the products comply
with GMP requirements.
High-speed disperser (homogenizer) strongly mixed decentralized
thick, solid, liquid, The production of the material in the liquid
detergent can quickly dissolve AES, AESA, LSA and other insoluble
Materials, save energy shorten the production cycle.
discharge gear pump cycle device, can accelerate quickly out of
shape and material.
scraped wall mixing, ready to cater to the shape of stirred tank
off, sweep the pot wall sticky material.
pot and the pipe surface mirror polishing.
(Note: According to the characteristics of your production process
requirements, the design of different washing liquid Polyester
production line.
Application :
Daily chemical industry. such as the production of medicine,
pesticides, food, liquid soap, commodity, cosmetics, chemical
shampoo, bath gel and
Specification:
| Specification | Volume (L) | Mixing Power (KW) | Mixing speed(R/MIN)) | Homogeneous power(KW) | Homogeneous speed(R/MIN) |
Type of heating |
| WD-C200 | 200 | 1.5 | 10-60 | 3 | 2890 | Steam or electric |
| WD-C300 | 300 | 1.5-2.2 | 10-60 | 3 | 2890 |
| WD-C500 | 500 | 2.2 | 10-60 | 4 | 2890 |
| WD-C1000 | 1000 | 2.2-4 | 10-60 | 7.5 | 2890 |
| WDC1500 | 1500 | 4-5.5 | 10-60 | 11 | 2890 |
| WD-C2000 | 2000 | 5.5 | 10-60 | 11 | 2890 |
| WD-C3000 | 3000 | 7.5 | 10-60 | 15 | 2890 |
| WD-C5000 | 5000 | 11 | 10-60 | 22 | 2890 |
